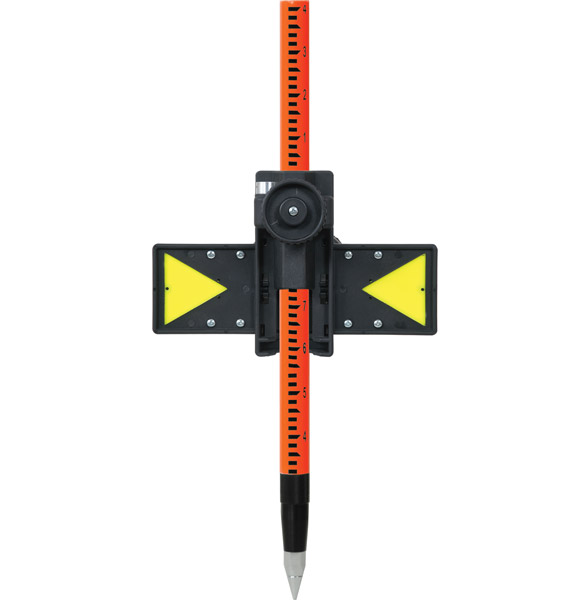

Geodimeter Style Site Rod with Point - Feet

5120-025-FOR


  • Small in diameter (20 mm), this light weight prism pole is designed to work with the Geodimeter® style sliding prism

  • Can be mounted on the site rod or the graduated outer section

  • Telescoping section is graduated in feet and centimeters

  • Graduations in feet, 10ths and 100ths are on the outer section for direct reading of prism height

  • Collapses to 4.80 ft (1.46 m) and expands to 8.60 ft (2.62 m)

  • The site rod comes with the QLV™ locking mechanism with a 40-min circular, adjustable vial

  • Also comes with two 1.25 inch OD adapters (#5120-030) for bipods and data collector attachment

  • Pole is constructed of durable fluorescent orange aluminum and has a hardened steel removable point

  • Includes Site Rod w/Point, graduations in ft

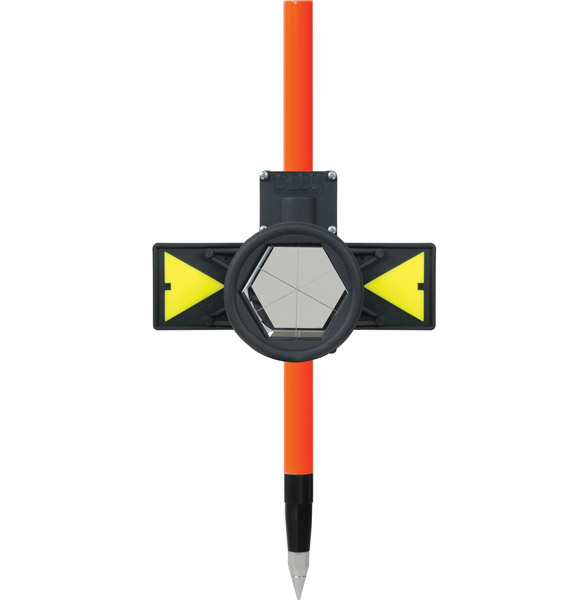

  • Optional 2.5-inch Sliding Prism with Tilting Reflector (#6455-00) sold seperately

  • Weighs 0.70 lb (0.31 kg)
