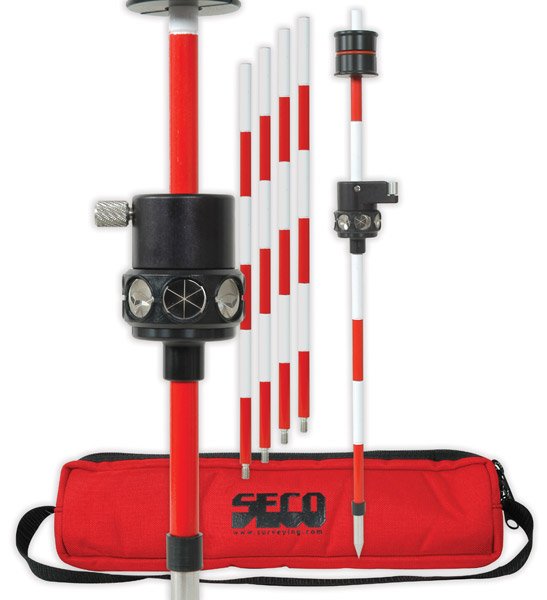

Sliding 360° Pin Pole Prism Kit

5910-21

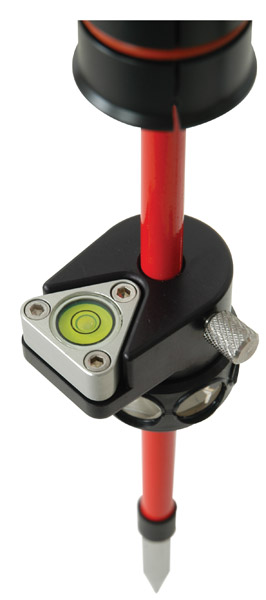

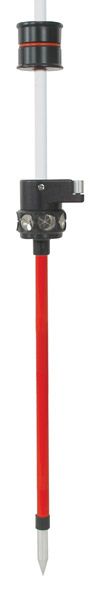

  • The prism assembly slides on 9 mm diameter solid steel pin poles

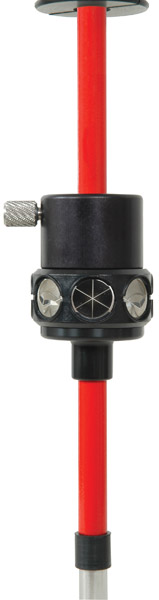

  • Composed of seven 12.7 mm diameter silver-coated mini prisms in a 360° configuration

  • +2-mm offset and a 40-minute adjustable circular vial

  • Clamp screw locks the prism assembly anywhere on the pole

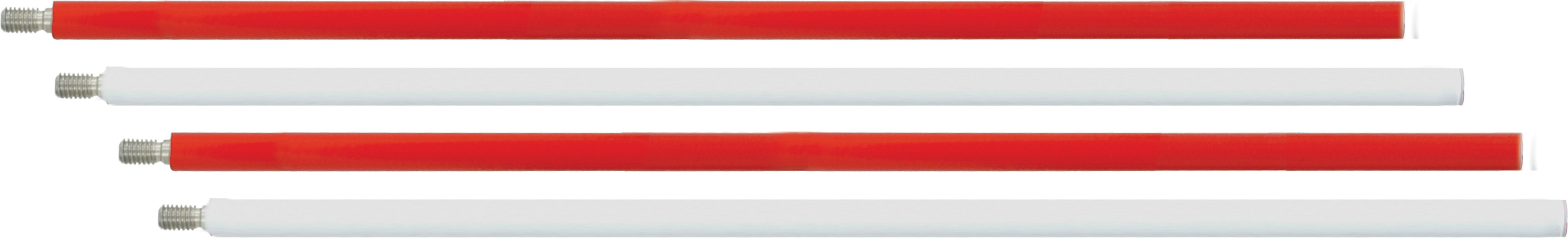

  • Four 1-foot pole sections feature alternating colors at 1-foot intervals

  • They connect to achieve heights from 0.25 to 3.85 ft in 0.20 ft increments

  • Spring-loaded ball detent adds tension, keeping the prism from falling when unlocked

  • Centers and locks the assembly into the grooves between each color interval

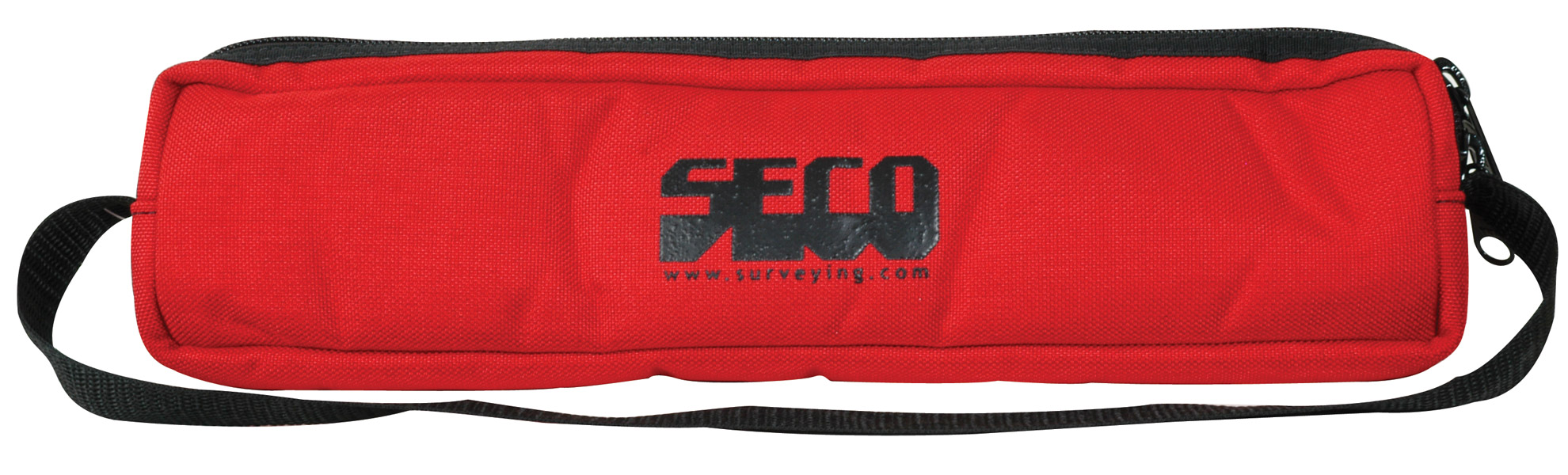

  • A stainless steel point, data collector adapter and carrying case are included

  • Weighs 1.76 lb (0.80 kg)
