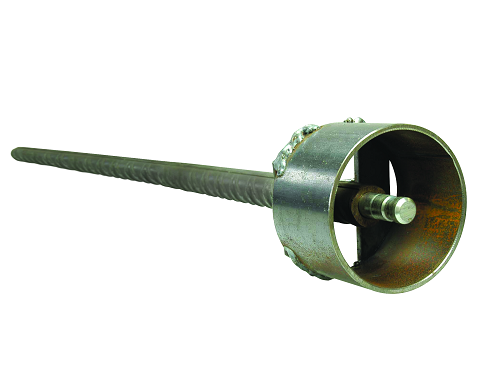

350 mm Ribbed Steel Measuring Bolt with Steel Ring

5 114 350-PR


  • For concreting as measuring point including Steel Ring Protection for protecting the convergence measuring bolt

  • Prisms and reflective target boards without any special adapter can be attached to the wild-spigot system

  • The welded steel ring provides protection against mechanical damage of the measuring point

  • The spigot is galvanized

  • Diameter 20 mm, ribbed steel

  • 350 mm in length

  • Weighs 3.84 lb (1.74 kg)
